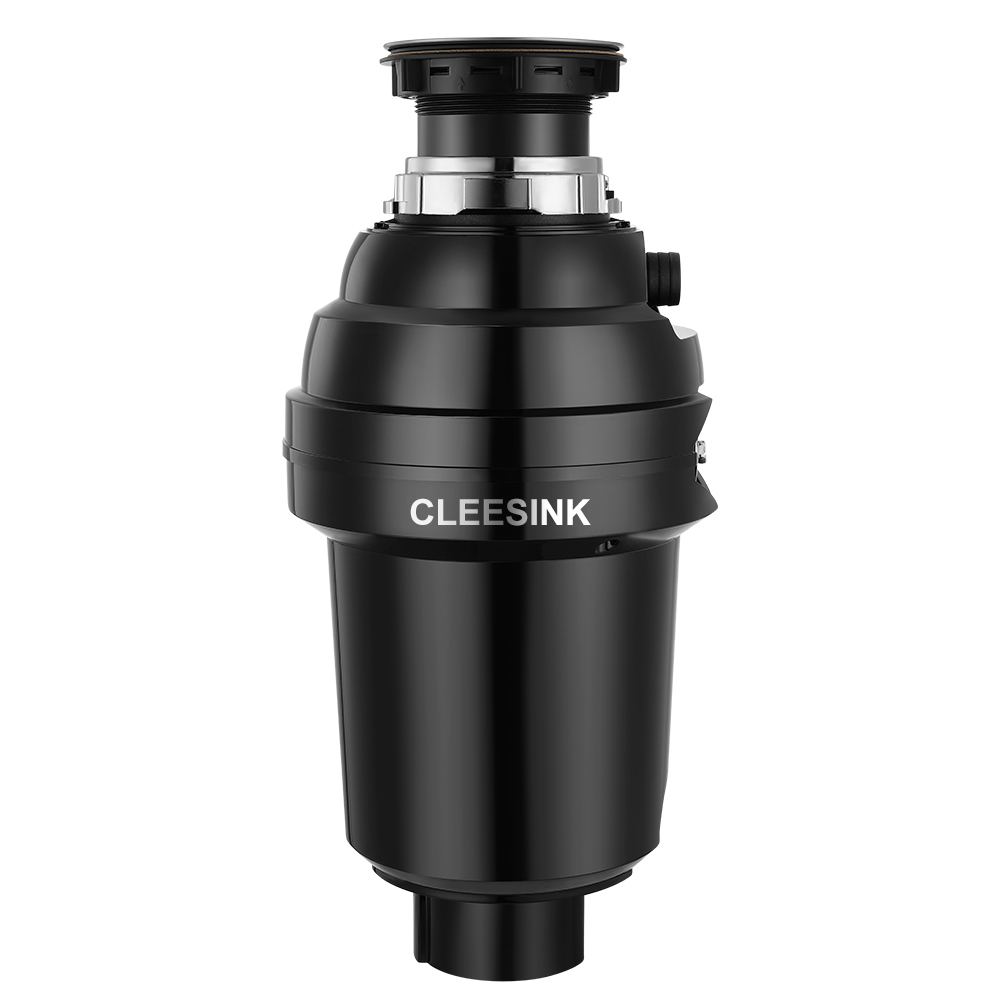

CLEESINK DC Series JD-B4 3/4 HP Food Waste Disposer
CLEESINK DC Series JD-B4 3/4 HP Food Waste Disposer
Product Model：JD-B4

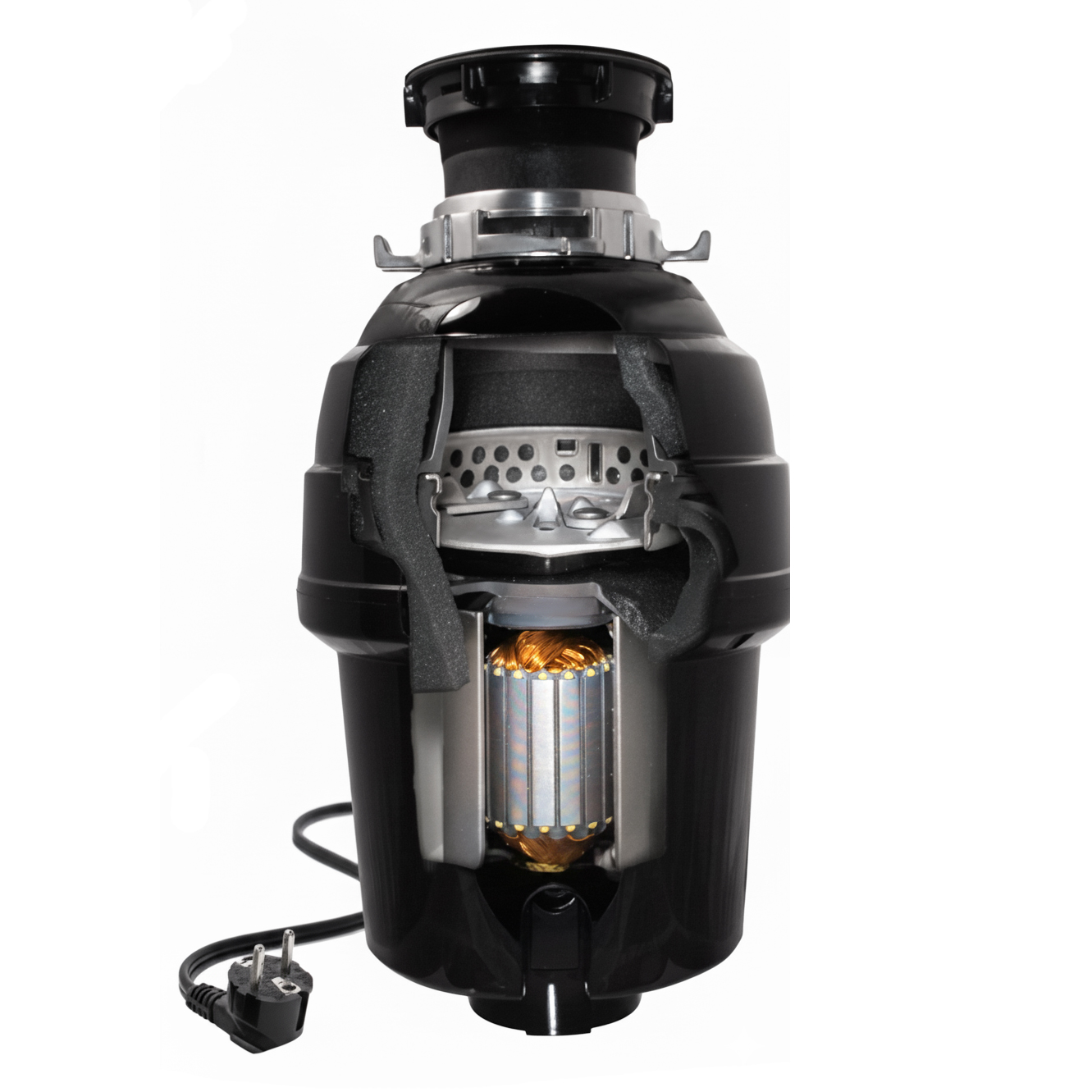

Our advanced DC motor technology delivers exceptional speed and high startup torque for immediate results. Designed to tackle everyday organic waste in a flash, it ensures a smooth, clog-free process that simplifies your post-meal routine. Experience the efficiency of a high-RPM system engineered for modern life.
Learn More
Product Parameters
| Item | JD390-B4 | JD560-B4 | JD750-B4 |
|---|---|---|---|
| Unit Diameter / Height | φ203mm / 390.4mm | φ203mm / 428.5mm | φ203mm / 428.5mm |
| Horsepower (Input Power) | 1/2Hp (390W) | 3/4Hp (560W) | 1Hp (750W) |
| Grinding Capacity | 1050mL | 1250mL | 1250mL |
| Voltage / Frequency | 220/110V 50/60Hz | 220/110V 50/60Hz | 220/110V 50/60Hz |
| Rotational Speed (RPM) | 3300/3500 | 3600/3800 | 3900/4100 |
| Grinding Ability | ≤2.5 mm | ≤2.5 mm | ≤2.5 mm |
| Noise Level | 55-65dB | 55-65dB | 55-65dB |
| Compatible Sink Hole Diameter | 90 (Optional: 140, 160, 180mm) | 90 (Optional: 140, 160, 180mm) | 90 (Optional: 140, 160, 180mm) |
| Motor Type | Permanent Magnet DC Motor | Permanent Magnet DC Motor | Permanent Magnet DC Motor |
| Safety Protection | Overcurrent and Overload Protection | Overcurrent and Overload Protection | Overcurrent and Overload Protection |
| Dishwasher Compatibility | Connectable | Connectable | Connectable |
| Grinding System | 409 Stainless Steel | 409 Stainless Steel | 409 Stainless Steel |
| Warranty Period | 2 Years | 2 Years | 2 Years |
Product Certification
KC
EAC
BIS
SII
ISO
ROHS
CB
CE
File Download
